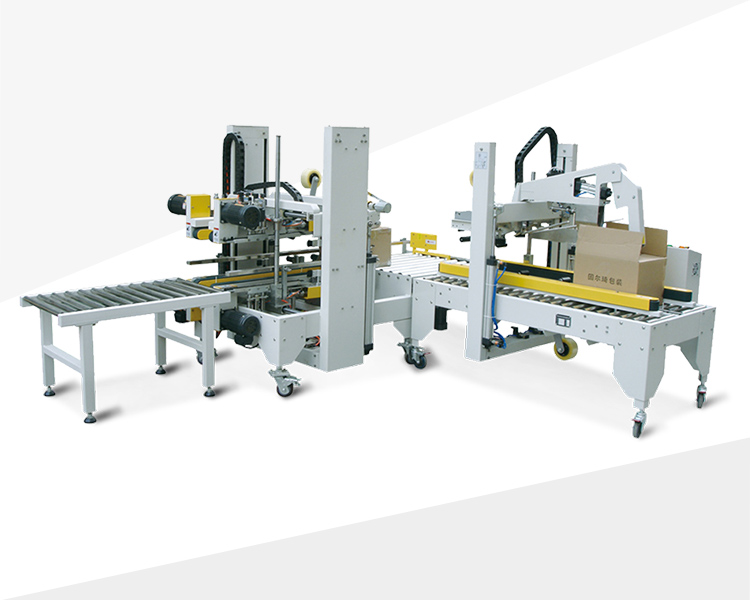

HỆ THỐNG MÁY DÁN THÙNG GURKI GPI-50+GPH-50

Contact

DESCRIPTION

The quality of this machine is excellent, is suitable for automatic I-shaped sealing of cartons of various specifications at the same time, without manually adjust. It not only saves labor but also improves efficiency. The machine extensive use in Food, Medicine, Cosmetics, Toy, Electronics, Print and other industries.

H type sealing: Automatic folding and sealing machine is matched with automatic four-corner sealing machine to form automatic “H” sealing.
Intelligent adjustment: Automatic adjustment of machine width and height according to carton specifications, suitable for carton sealing of different specifications at the same time.
Beautiful effect: the sealing result is smooth, standard and beautiful.
The machine works efficiently and saves manpower.
The automatic sealing machine is easy to operate, economical and durable, safe, and has the lowest failure rate.

PACKAGE EFFECT

SPECIFICATIONS
MODEL GPI-50 GPH-50
Packing speed 20m/min 300-360Pcs/h
Max. Packing size L500×W500×H500mm L500×W500×H500mm
Min. Packing size L200×W150×H150mm L320×W200×H180mm
Power supply 110V, 220-240V, 50/60Hz, 1Phase 220-240V, 50/60Hz, 1Phase
Power 240W 6kg/ cm³ 150NL/min
Adhesive tape width 48mm, 60mm, 75mm 48mm, 60mm, 75mm
Machine dimension L1700×W880×H1450mm L2100×W1200×H1580mm
Machine weight 280kg 450kg
Net weight 800kg 650kg
