DESCRIPTION

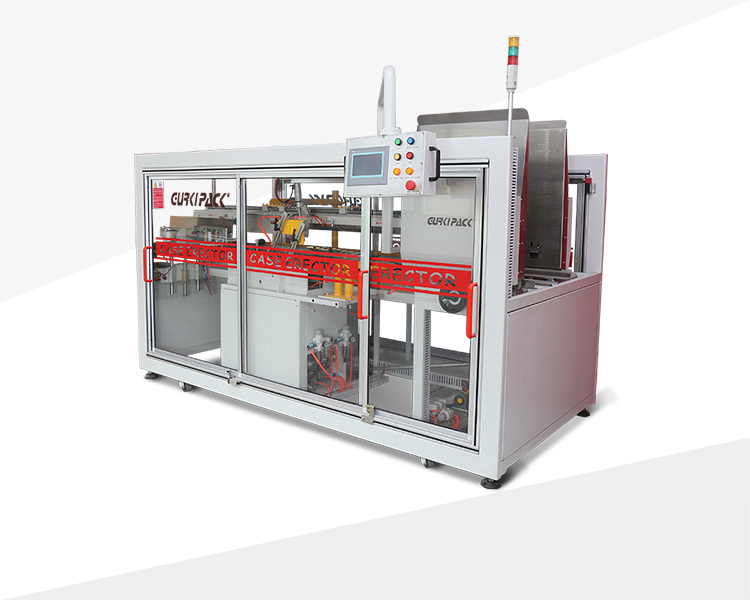

The High-speed Carton erector GPK-40H50 is a patented product independently researched and developed by the Gurki. The horizontal unpacking speed reaches 50 boxes/min, which is 50% lower than the other horizontal unpacking machine of the same level and economical, economical and practically.
Application industry: The High-speed Carton erector GPK-40H50 has been widely used in food, medicine, beverage, daily chemical, electronic etc. industries.
PACKAGE EFFECT
SPECIFICATIONS
| MODEL | GPK-40H50 |
|---|---|
| Erecting speed | 50ctns/min |
| Carton storage | About 80PCS (800mm) |
| Adhesive tape width | 48/60mm (I type tape) |
| Power Supply | AC 380V; 3? ; 50HZ;746W |
| Air circuit-breaker’s configuration of the front equipment : | 20A |
| Air compressing | 450NL/min |
| Air Pressure | 6KG/cm³ |
| Power of the Compression | 3HP |
| Machine size | L3120*W1250*H1740mm |
| Machine weight | 1200kg |
| Carton size(mm) | L=250-450,W=150-400,H=100-300 |
