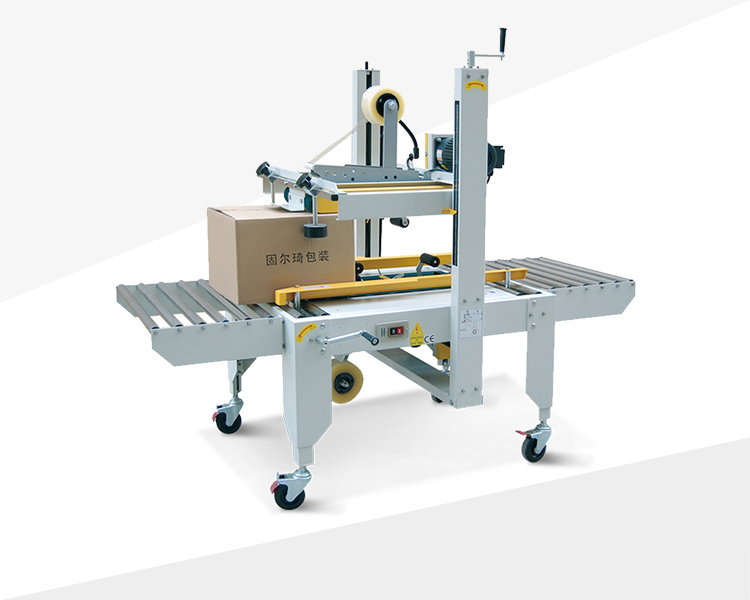

DESCRIPTION
Semi automatic carton sealer GPB-56 use four belts to complete the upper and lower drive sealing box, ensuring the sealing box is smooth and fast, and is used in lighter and narrower cartons.
-Top and bottom belt driven
Use four belts to complete the upper and lower drive sealing box, ensuring the sealing box is smooth and fast, and is used in lighter and narrower cartons.

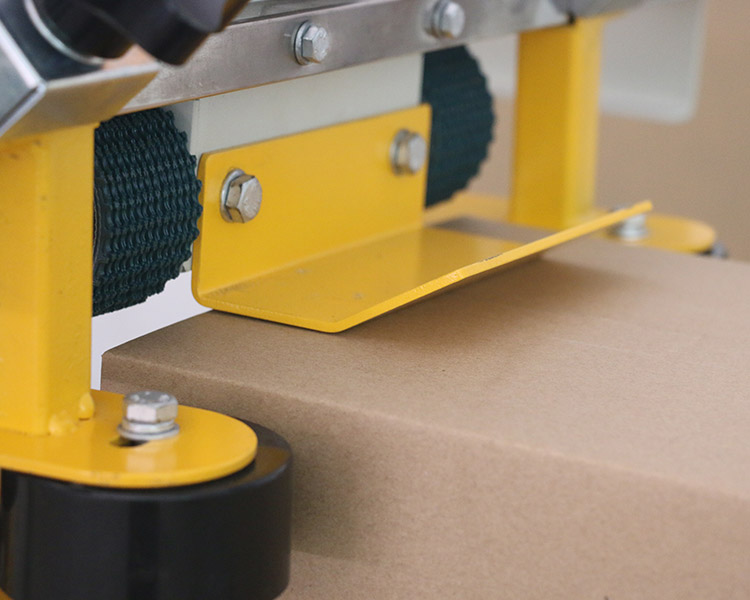

-Top driven stabile design
Top driven adopts 5 stars handle knob + folding plates smooth + box position wheel, lockbox position wheel and keep folding plates smooth with 5 stars handle knob, preventing carton from lifting and making the sealing beautiful.
-Low-energy motor
Equipped with 2 Omron Motors, fast speed, low cost, sealing smoothly and stably, continuous uninterrupted operation.
-Height adjustment controller
Manually adjust height and width according to carton size within only 1 minute.
-Stainless steel roller, long lasting
The roller is made of stainless steel with high abrasion resistance, easy to clean dust and dander, Increasing convey speed, low noise, long lasting
PACKAGE EFFECT
| MODEL | GPB-56 |
|---|---|
| Conveyor speed | 20m/min |
| Max. Packing size | L∞×W500×H600mm |
| Min. Packing size | L150×W180×H150mm |
| Power supply | 110V, 220-240V, 50/60Hz, 1Phase |
| Power | 240W |
| Adhesive tape width | 48mm, 60mm, 75mm |
| Machine dimension | L1020×W850×H450mm |
| Machine weight | 130kg |
