DESCRIPTION

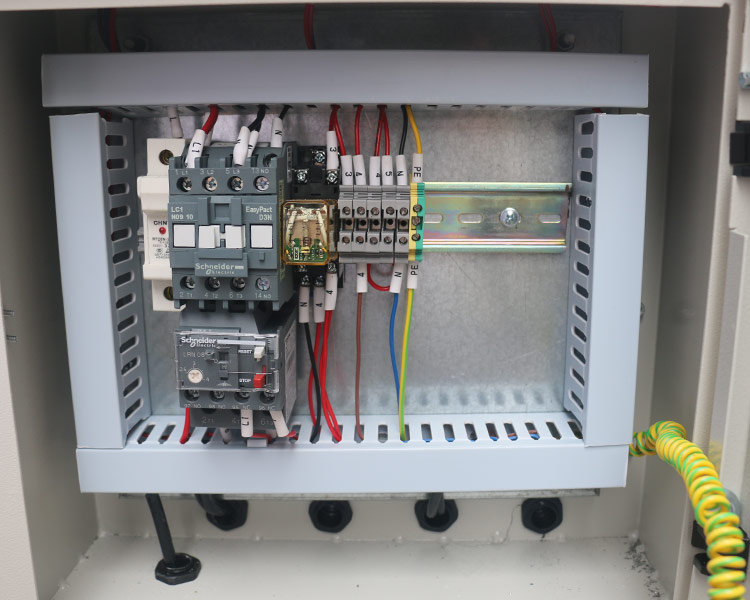

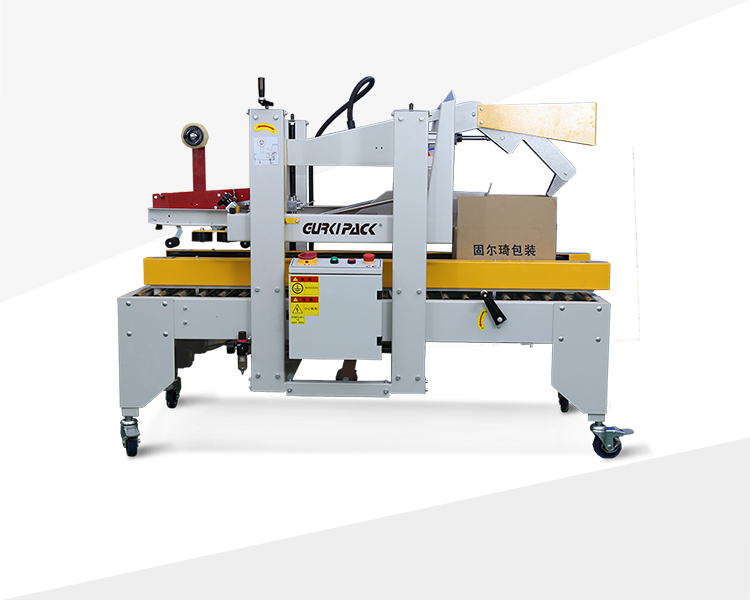

The new double column flaps folding carton sealer GPC-50E is optimized and upgraded on the basis of the single-column flaps folding carton sealer. The double-column clearly reflects the firmness and stability of the machine, and is equipped with a separate electric box control system. It can also install the upper drive system according to the customer’s product characteristics. This type of carton sealer is widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.
Durable parts: use imported parts and electrical components
Easy adjustment: manually adjust the width and height of the machine according to the carton specifications

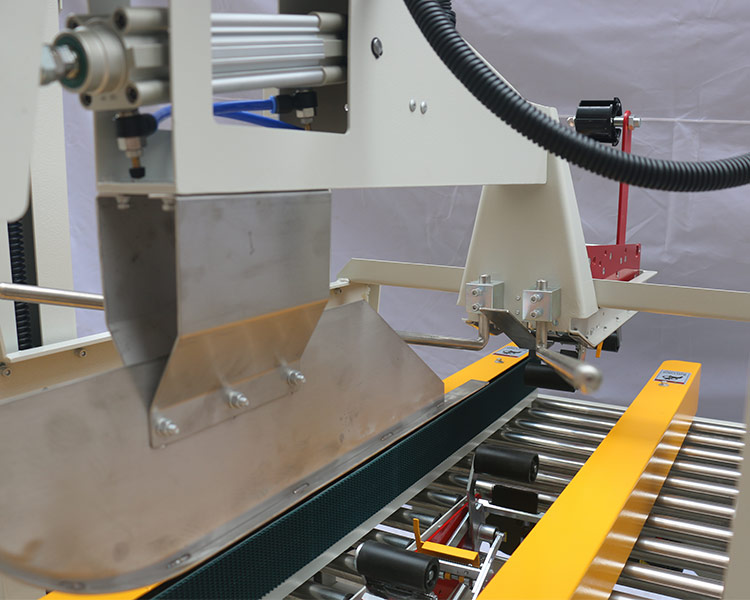

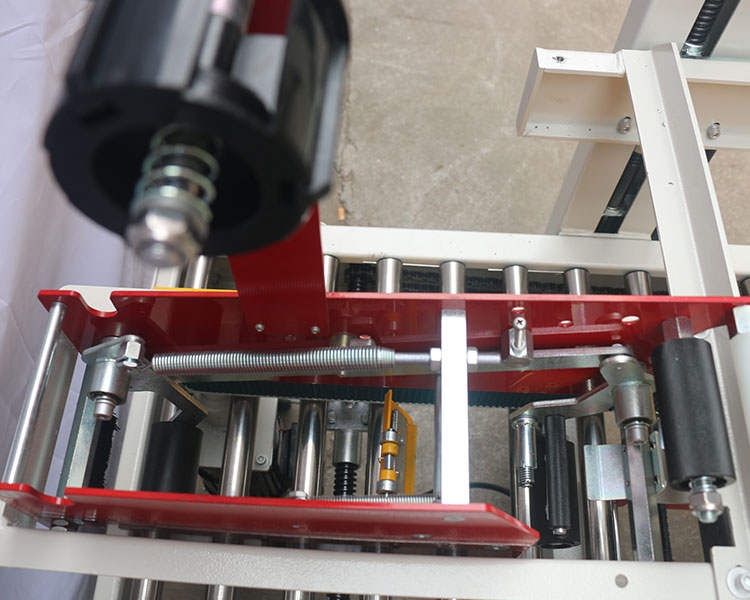

Fast sealing: automatically fold the top cover of the carton, automatically attach the tape up and down, economical, smooth and fast
Safety protection: Install blade guards to avoid accidental punctures during operation
Applicability: The automatic sealing machine can be used in a single machine or in conjunction with an automated packaging line.
PACKAGE EFFECT
MODEL | GPC-50E |
---|---|
Conveyor speed | 20m/min |
Max. Packing size | L600×W500×H500mm |
Min. Packing size | L200×W150×H150mm |
Power supply | 110V, 220-240V, 50/60Hz, 1Phase |
Power | 400W |
Adhesive tape width | 48mm, 60mm, 75mm |
Machine dimension | L1770×W850×H1520mm |
Machine weight | 250kg |
MODEL | GPC-50ED |
---|---|
Conveyor speed | 20m/min |
Max. Packing size | L600×W500×H500mm |
Min. Packing size | L200×W150×H150mm |
Power supply | 110V, 220-240V, 50/60Hz, 1Phase |
Power | 400W |
Adhesive tape width | 48mm, 60mm, 75mm |
Machine dimension | L1770×W850×H1520mm |
Machine weight | 250kg |
