MÁY CO NHIỆT GPL-6030Z+GPS-6040

Contact



DESCRIPTION

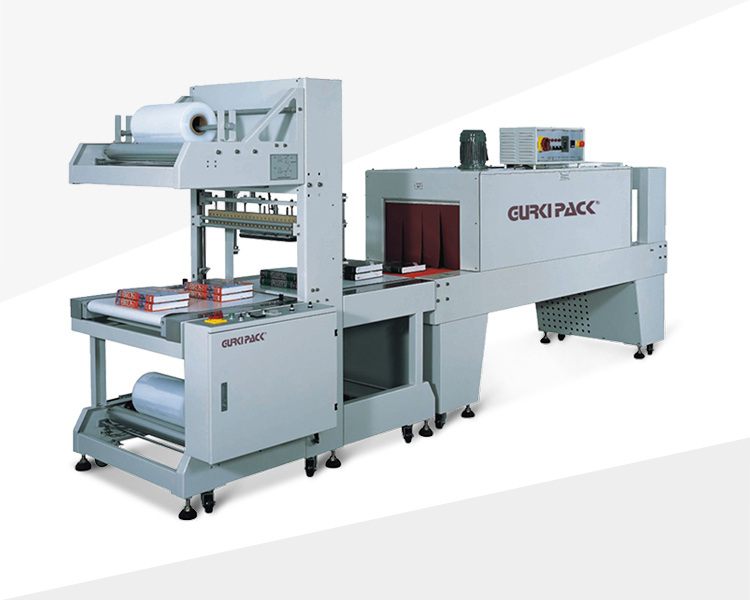

The automatic Frontal Feeding Sleeve Sealing and Shrinking machine GPL-6030Z+GPS-6040 is made by international technology which is suitable for a single item packaging or bottom tray packaging. The machine has a compact structure and a small footprint. It is very suitable for automatic unmanned packaging of automatic packaging lines. This packaging machine is appropriate for exporting moisture-proof packaging for small household appliances, such as electric fan, microwave oven, oven and other outer box shrink packaging.

-The seal is firm, no crackingnon-stick knife

-Adjustable two-side guide rods for different specifications of the product, easy to operate

-Using photoelectric detection, automatic positioning and sealing

-Fast packaging speed, unlimited package length

-Automatic pushing, film feeding, sealing and cutting

-Small machine footprint

PACKAGE EFFECT

SPECIFICATIONS
MODEL GPL-6030Z GPS-6040
Machine dimension L1650×W920×H1850mm L2700×W900×H1640mm
Max. Packing size W+H≤700mm L1500×W450×H300mm
Cutter size/tunnel size 850mm L1800×W600×H400mm
Packing speed 8-22pcs/min 20-80pcs/min
Machine weight 465kg 600kg
Power 2kw 22kw
Power supply 220V/380V,50/60Hz,3 Phase 220V/380V,50/60Hz,3 Phase
Max current 10A 35A
Air pressure 6kg/cm³ /
