DESCRIPTION

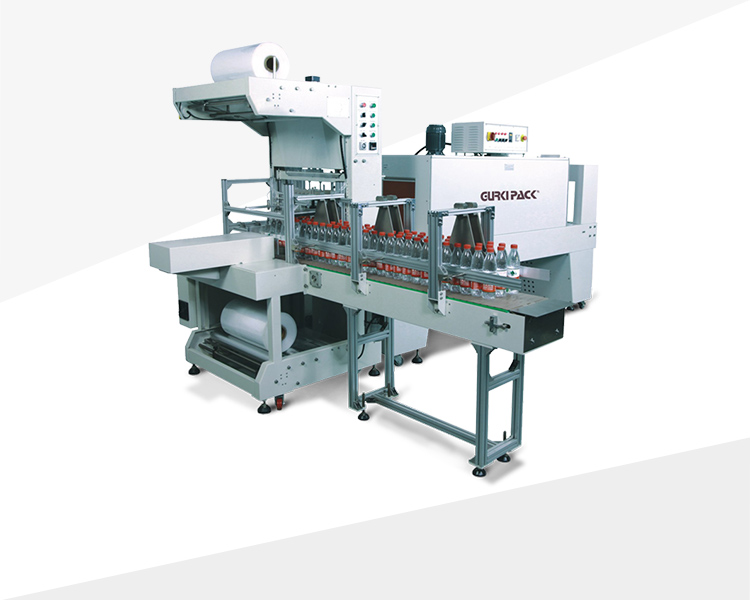

Automatic sleeve sealing and shrinking machine GPL-6030AH+GPS-6040 is a automatic PE film shrink packaging machine, which is suitable for the combination of products without bottom support automatically shrink packaging.
Application industry: the packaging machine is suitable for mineral water, beverage, daily chemical washing products and other combination of shrink packaging.
- The sealing knife is specially designed, so the sealing is firm, no cracking, no sticking knife
- Automatic feeding, pushing, film feeding, sealing and cutting
- It can archieve the combination packaging of various sizes and specifications (2 rows, 3 rows, 4 rows, etc.) according to the requirements of the customers. The package can be replaced by the transfer switch on the control panel
- Easy to operate. It takes only 2 to 3 minutes to replace a product of different specifications. Moreover, the automatic feeding device can be designed according to different bottle types.
- Conveyor belt can be designed for left or right feed according to customer needs
- Applicable to PE, POF shrink film
PACKAGE EFFECT
SPECIFICATIONS
MODEL | GPL-6030AH | GPS-6040 |
---|---|---|
Machine dimension | L2600×W1350×H2000mm | L2700×W900×H1640mm |
Max. Packing size | W+H≤700mm | L1500×W450×H300mm |
Cutter size/tunnel size | 700mm | L1800×W600×H400mm |
Packing speed | 6-14pcs/min | 20-80pcs/min |
Machine weight | 465kg | 600kg |
Power | 2kw | 22kw |
Power supply | 220V/380V,50/60Hz,3 Phase | 220V/380V,50/60Hz,3 Phase |
Max current | 10A | 35A |
Air pressure | 6kg/cm³ | / |
