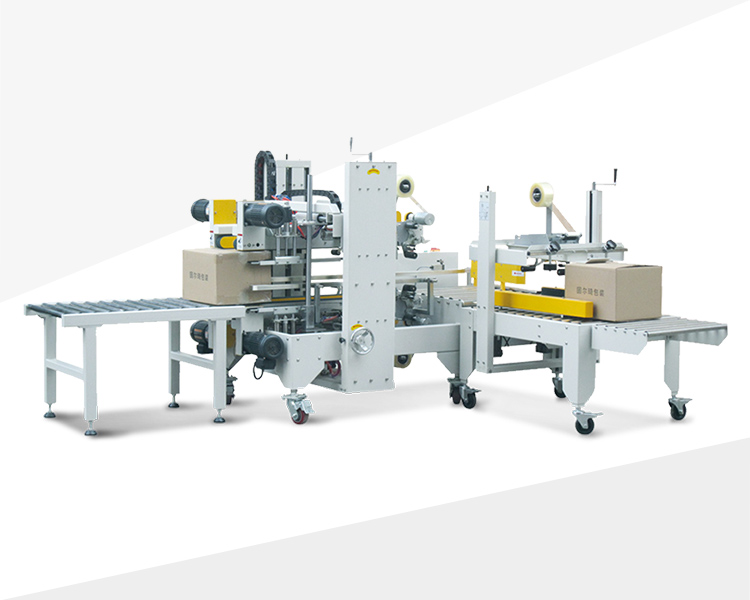

DESCRIPTION
Four corner sides carton sealer successful researched and developed, fill the blank of the requirements of special industries, especially for the industries which need ocean shipping. Features : Dust-proof, moisture proof, oxidation resistant, acid and alkali corrosion resistant, suitable for all size of packages, manually adjust height and width, 90 degrees turning device, auto pushed by cylinder; sealing from four corner sides simultaneously, could combine with GPA/GPB/GPC to realise H type sealing. This sealing machine could be used on food, daily chemicals or electronics industries.
PACKAGE EFFECT
SPECIFICATIONS
| MODEL | GPA-50 |
|---|---|
| Production speed | 0-20ctns/min |
| Carton size(mm) | L150-∞xW150-500xH120-500 |
| Power supply | 220/380V、50HZ |
| Power | 240W |
| Adhesive tape width | 48/60/75MM |
| Machine dimension | L1020xW850xH1350mm |
| Machine weight | 130KG |
| MODEL | GPG-50 |
|---|---|
| Packing speed | 0-20m/minm |
| Carton size | L320-500mm×W200-500mm×H180-500mm |
| Power supply | 220/380V、 1ф -3ф 、 50/60Hz |
| Applicable tape | W48mm/60mm/75mmxL1000 |
| Machine size | L1900×W1130×H1530 |
| Machine weight | 400kg |
